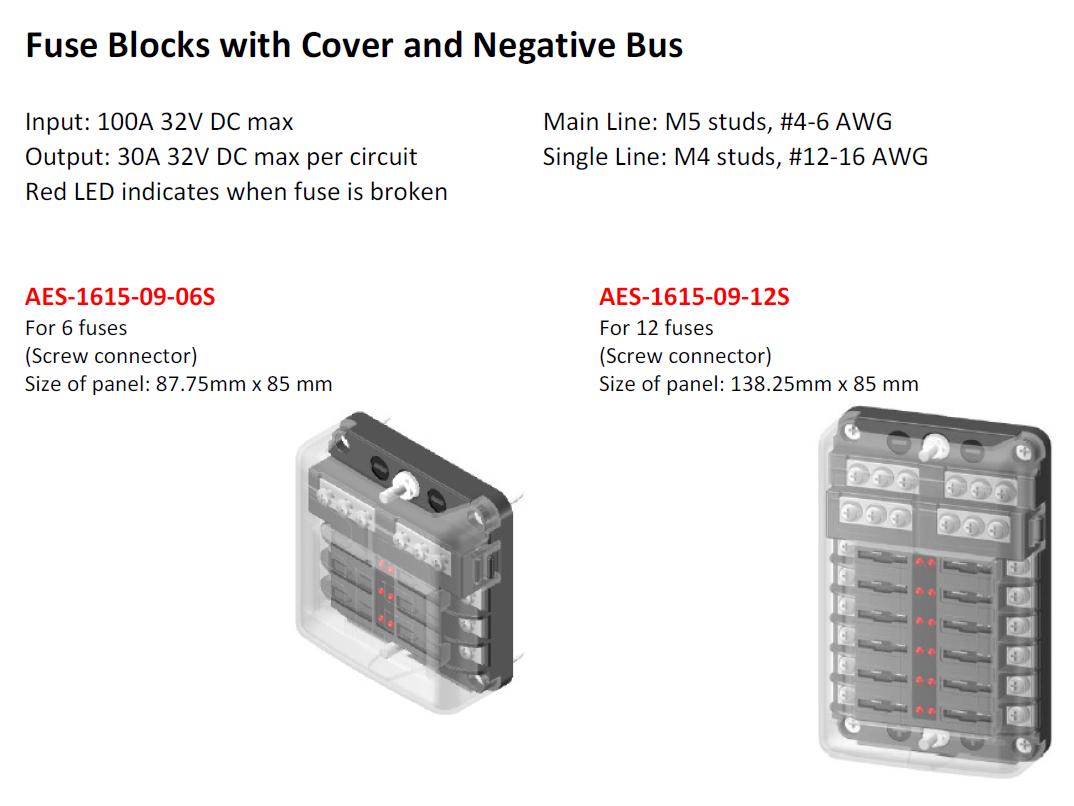

Fuse Blocks with Cover and Negative Bus 1615-09-06S/12S

Fuse Blocks with Cover and Negative Bus
Input: 100A 32V DC max
Output: 30A 32V DC max per circuit
Red LED indicates when fuse is broken
Main Line: M5 studs, #4-6 AWG
Single Line: M4 studs, #12-16 AWG

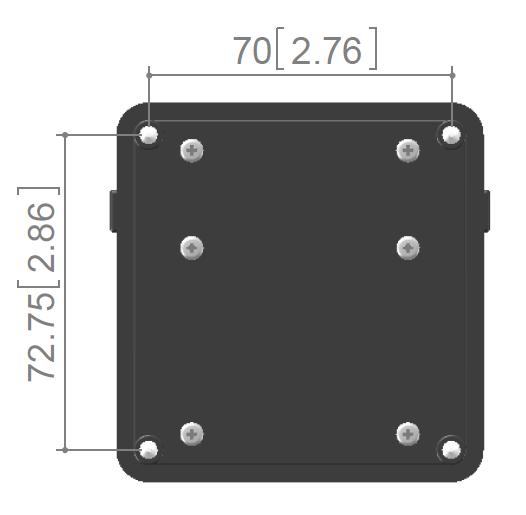

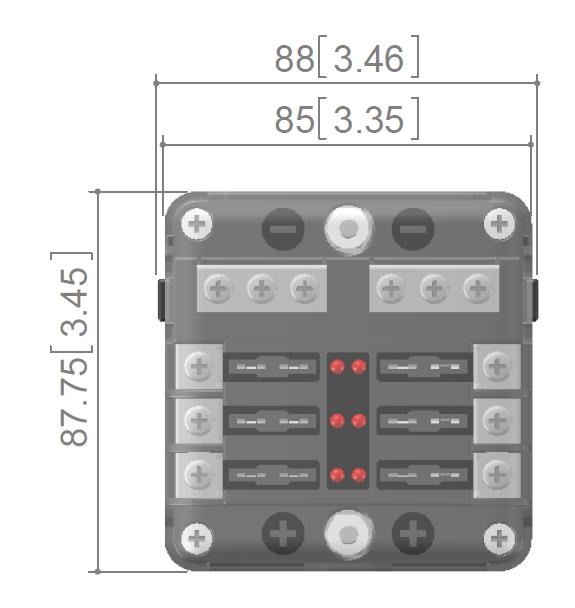

AES-1615-09-06S (For 6 Fuses)

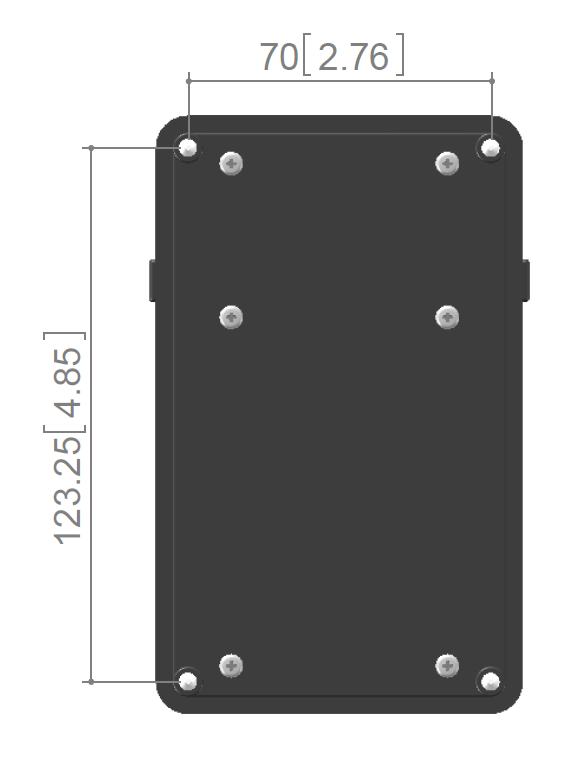

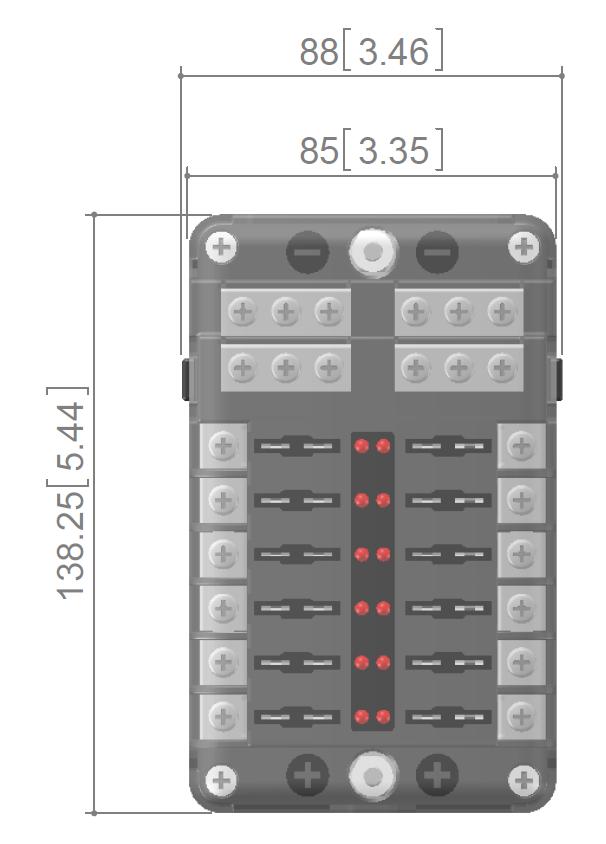

AES-1615-09-12S (For 12 Fuses)
