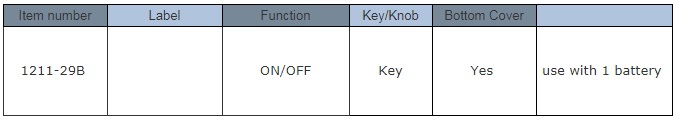

Battery Selectors & Battery Disconnect Switches 1211-29B

Mini Master Battery Switch With Removable Key,

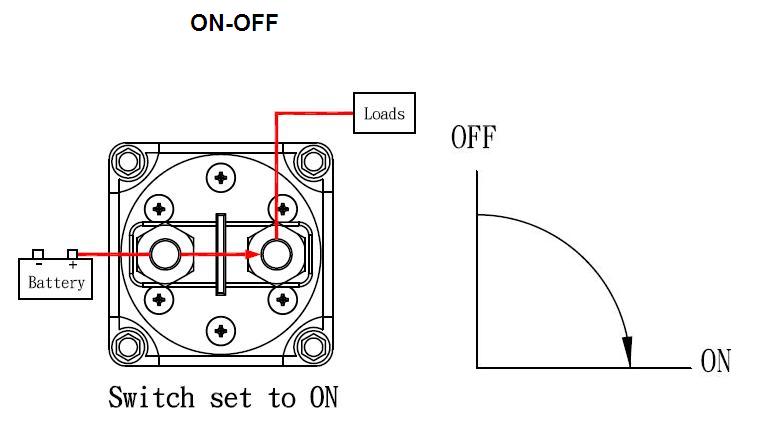

On/Off, With Bottom Cover, For Panel Mount Use
Nominal Voltage: Up To 48VDC
‧Continuous Rating: 300Amps
‧Intermittent Rating: 700Amps/10 secs.
‧Cranking Rating: 1000Amps/5 secs.
‧Inrush Rating: 1500Amps/ms.
‧Dimensions: 69*69*75 mm
