SPDT Rocker Switch 1118-51

Rocker Switch
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps.
Contact R.: 50m Ω Max.
Insulation R: DB500V 100m Ω Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles.

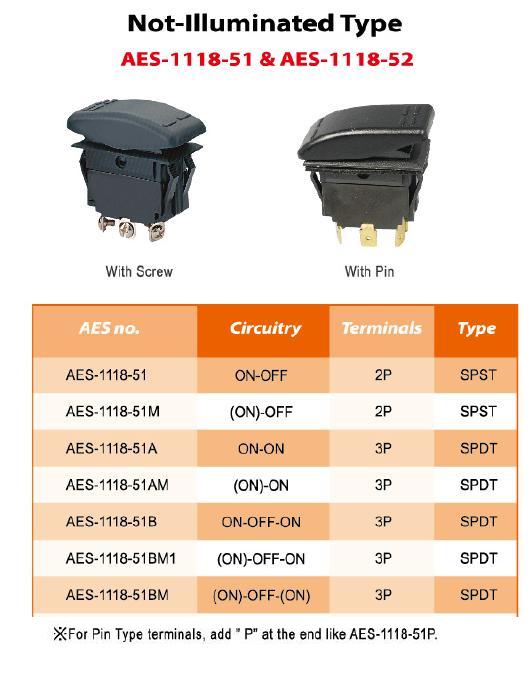

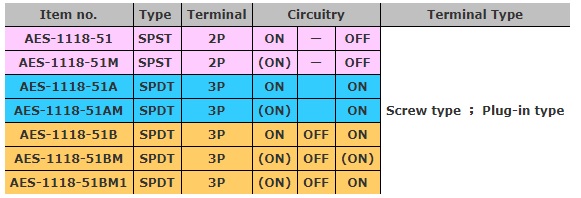

SPST or SPDT
2 or 3 Terminals (Screw type or Plug-in Type)
IP54 Approved
